Project Description

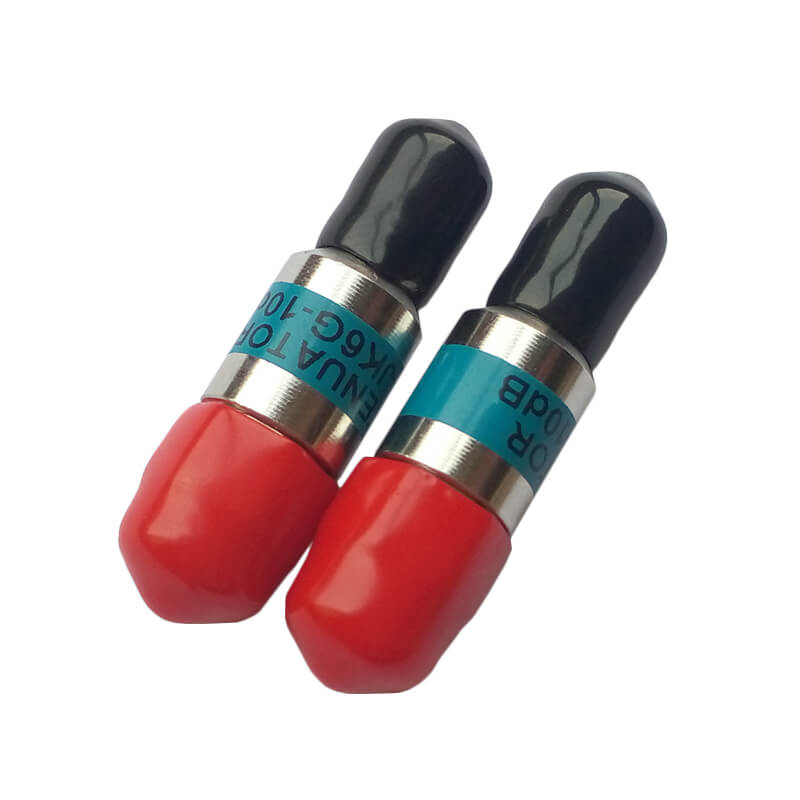

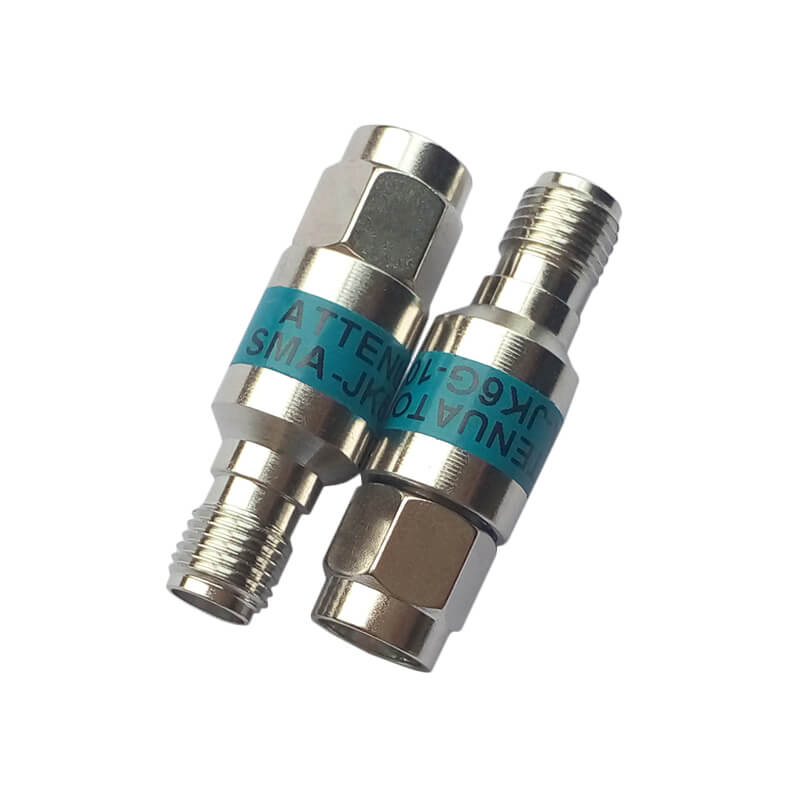

2W SMA-JK Attenuator 1-30dB avaliable DC-6GHz
| Specification | Parameter |
|---|---|
| Model | BC-AT02-03 |
| Power | 2W |
| Connector | SMA-JK |
| Frequency Range | DC-6GHz |
| Attenuation | 1,2,3,5,6,10,15,20,30dB available, and 1-10dB.±0.5dB,15-30dB±1dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

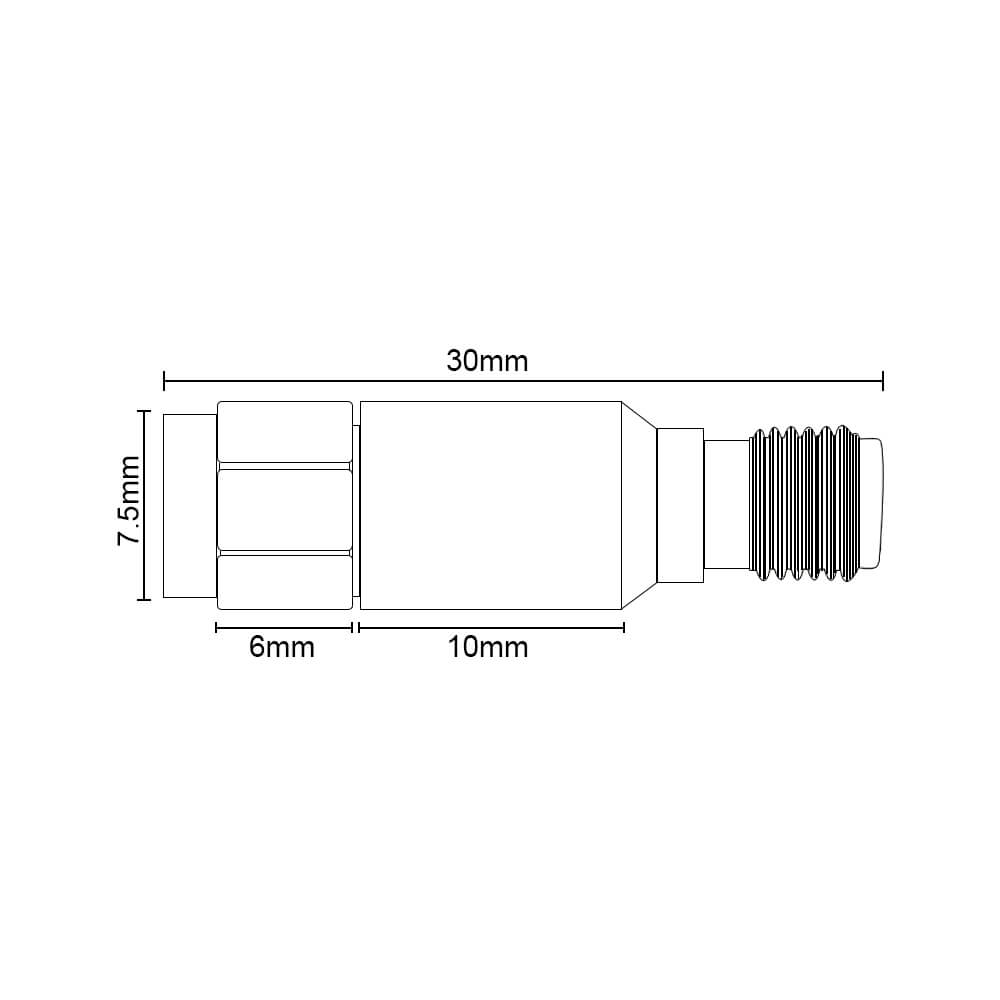

| Dimension | 30*9mm |
| Weight | 8g |
TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORTApplication:
2W coaxial fixed attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
