Project Description
50W N, N-JK RF Fixed Attenuator DC-6GHz/8GHz 1-40dB avaliable

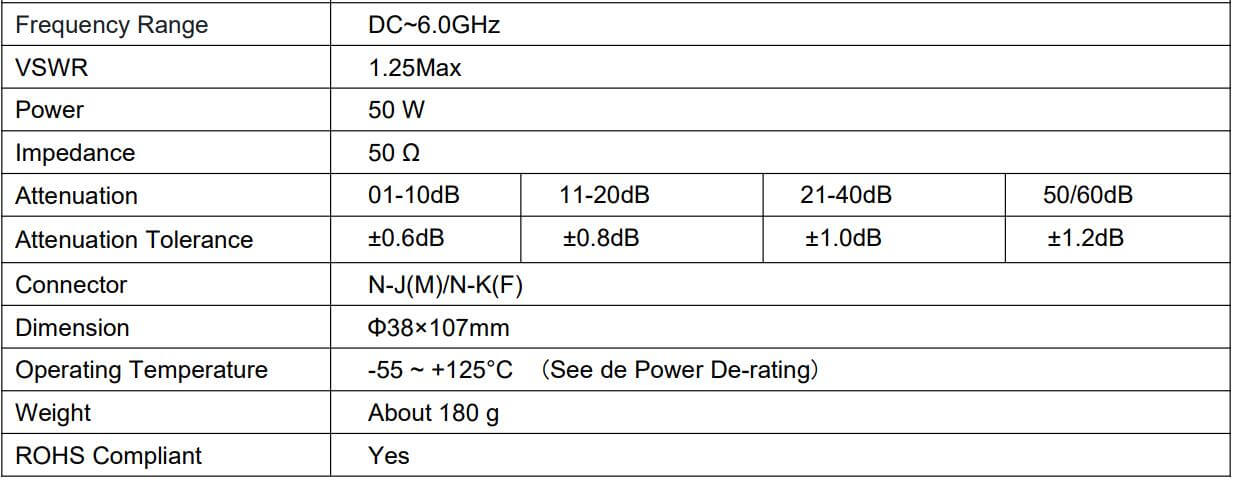

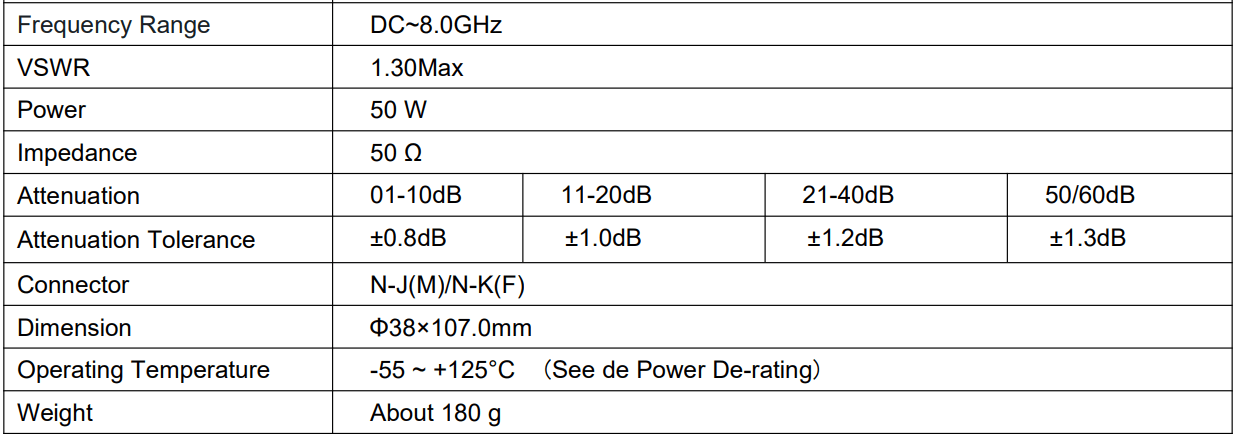

| Specification | Parameter |
|---|---|
| Model | BC-AT50-01-6G |
| Power | 50W |
| Connector | N-JK |
| Frequency Range | DC-6GHz /DC-8GHz |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |
| Dimension | Φ38×107mm |
| Weight | 180g |
Application:
50W DC-6/8GHz coaxial fixed attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
