Project Description

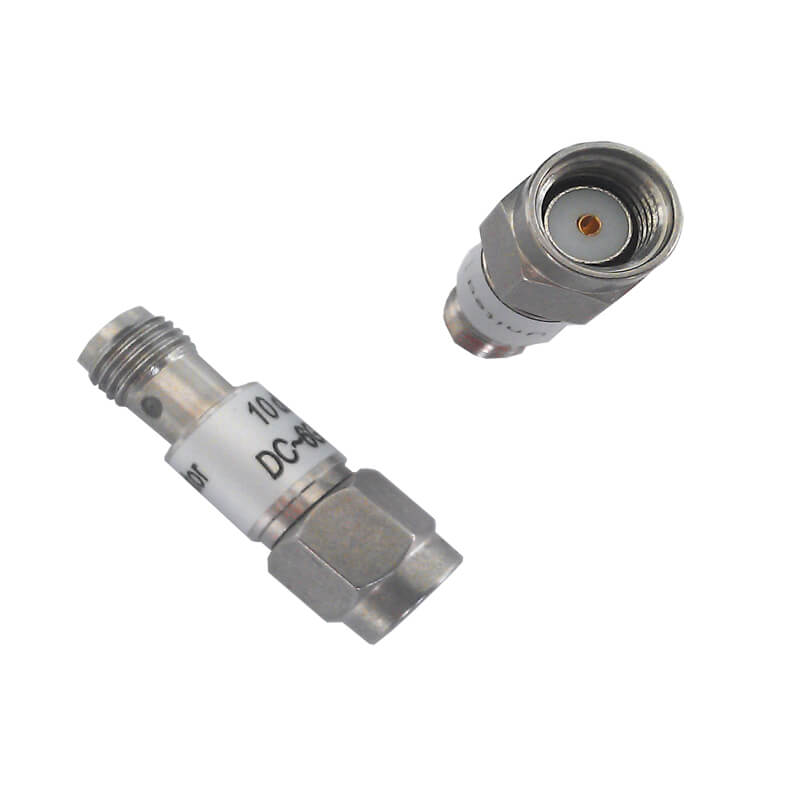

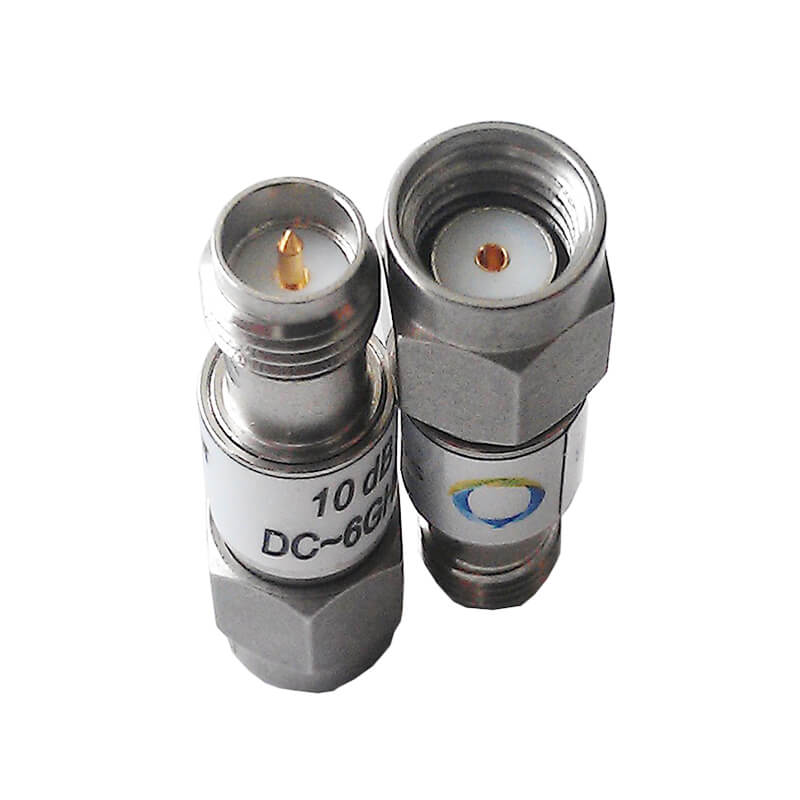

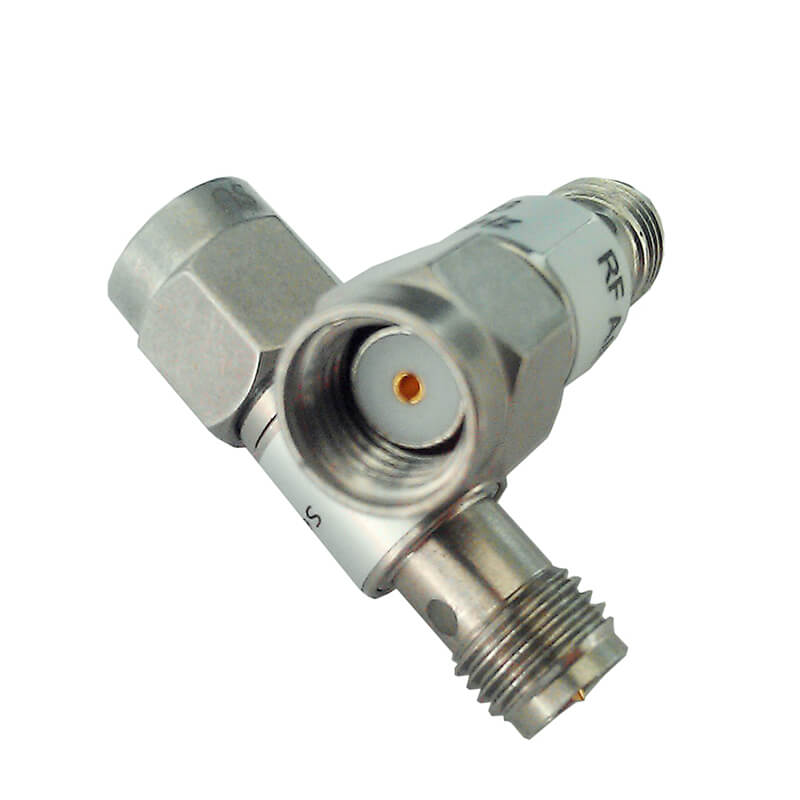

2W SMA RP-Attenuator DC-8G/13G 1-40db
| Specification | Parameter |
|---|---|
| Model | BC-AT02-07 |
| Power | 2W |
| Connector | RP-SMA Female to male |
| Frequency Range | DC-8G/13G |
| Attenuation | +/-0.5dB,30dB+/-0.8dB,40dB+/-1dB |
| VSWR (MAX) | 1.3:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |
| Dimension | 26*φ7.5mm |
| Weight | 8g |
Download the manual you need!
This is the place where you could download our manual of the product.

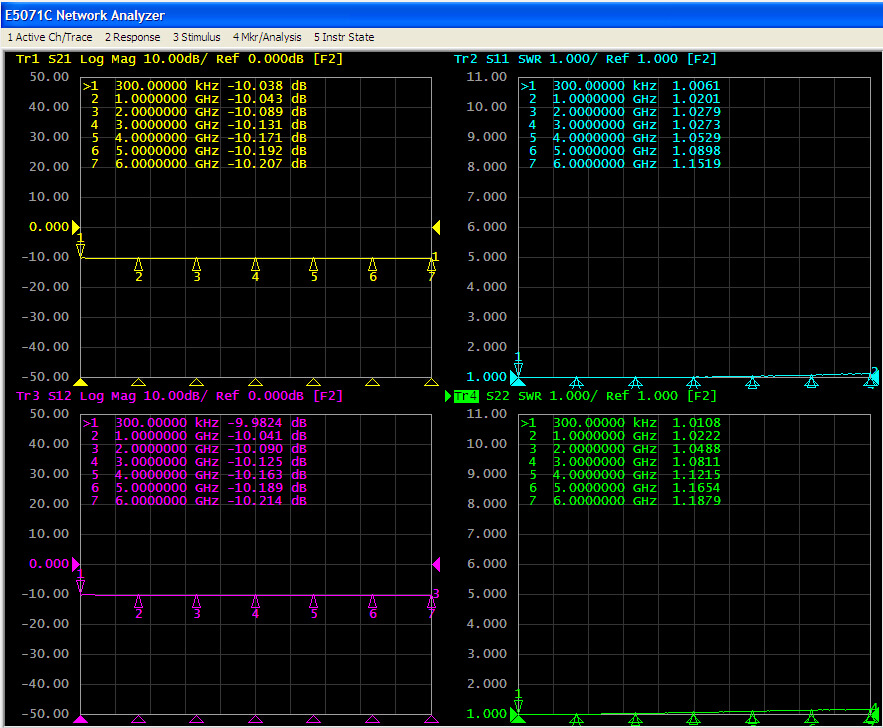

TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORTApplication:
2W coaxial fixed attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
