Project Description

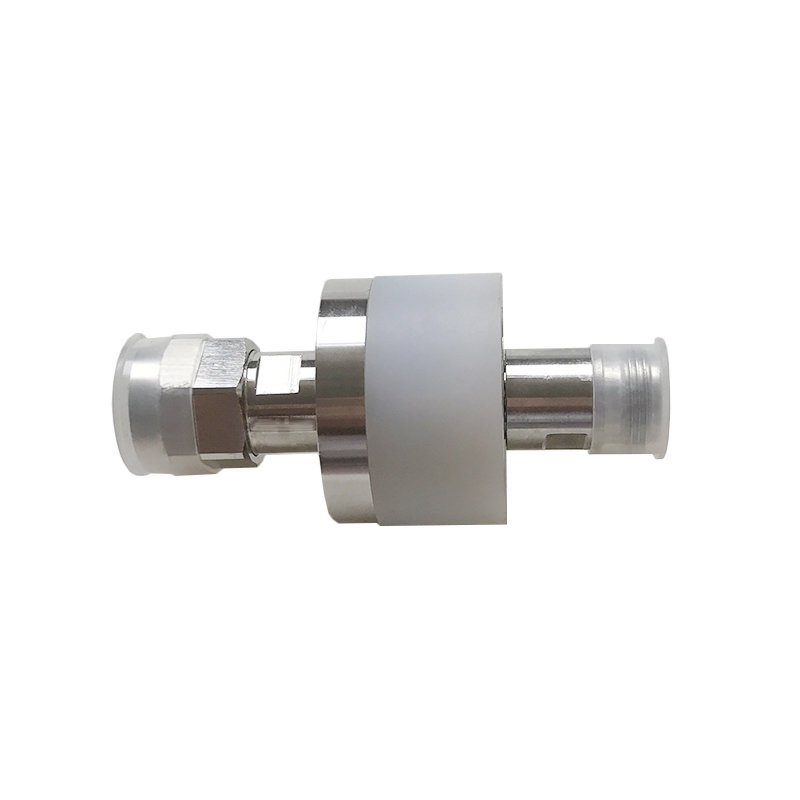

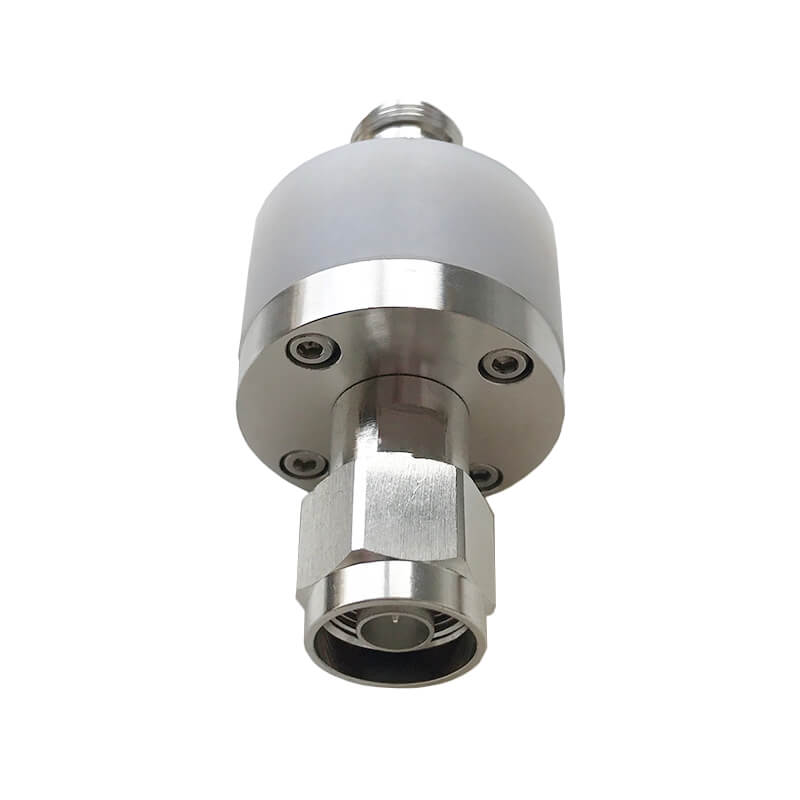

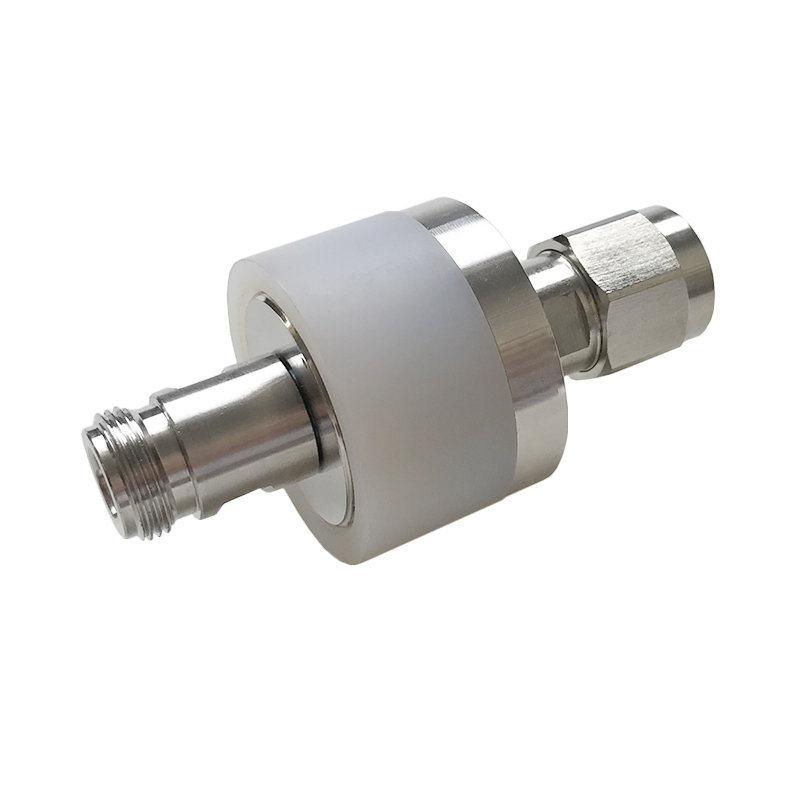

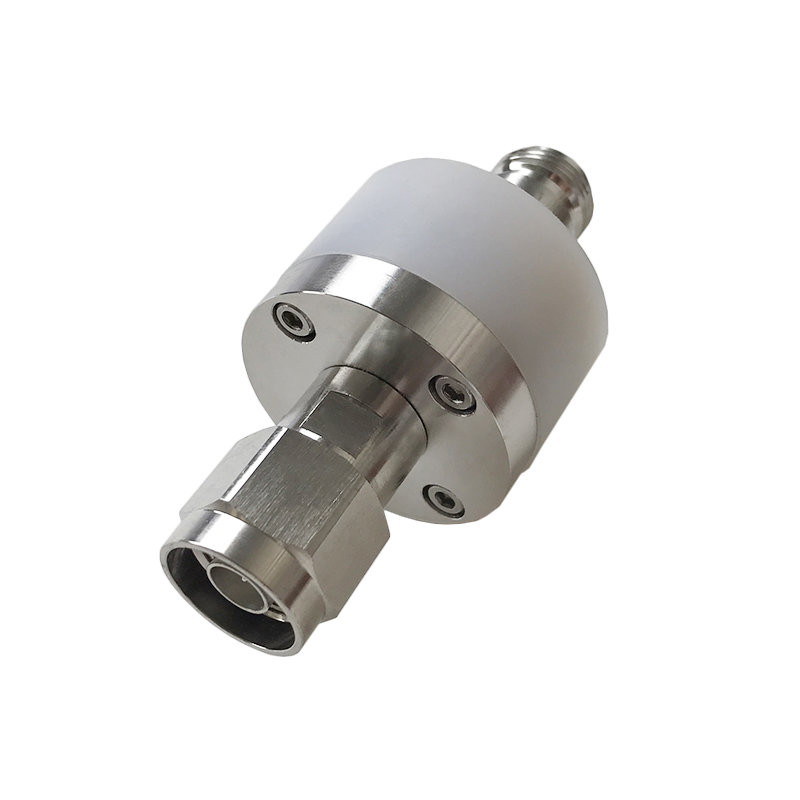

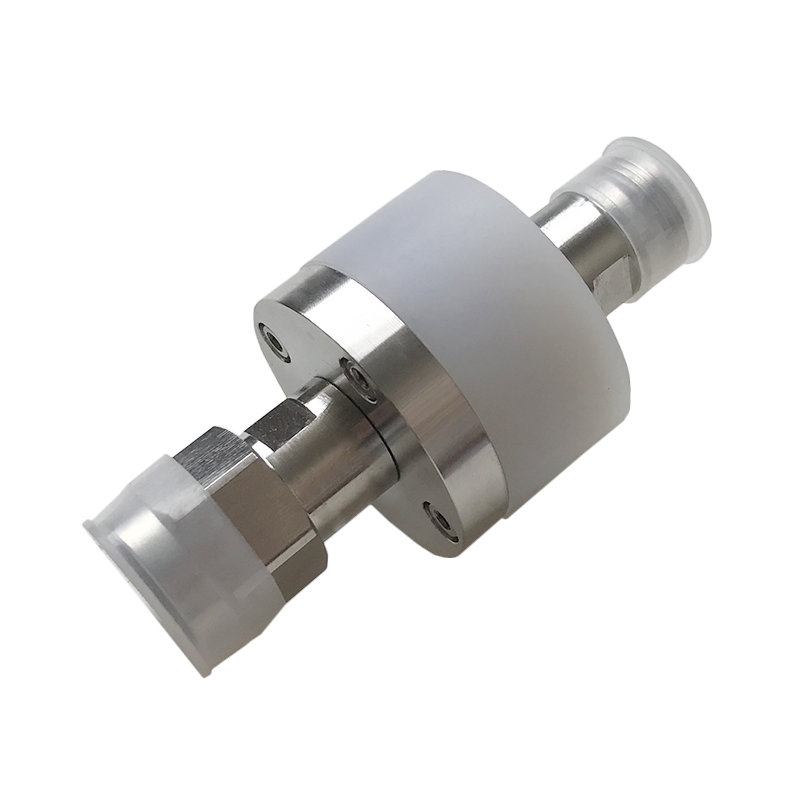

High Voltage N-JK DC BLOCKS

Specification Parameter
Model BC-DB02-03
Power 200W
Connector N-JK
Frequency Range DC-3GHz
WorkingVoltage 3000V
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension 78*38mm
Weight 0.3kg
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of DC Block. If you want to see more report of the item, please contact us now.
TEST REPORT

Application:

High voltage N-JK dc blocks is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
