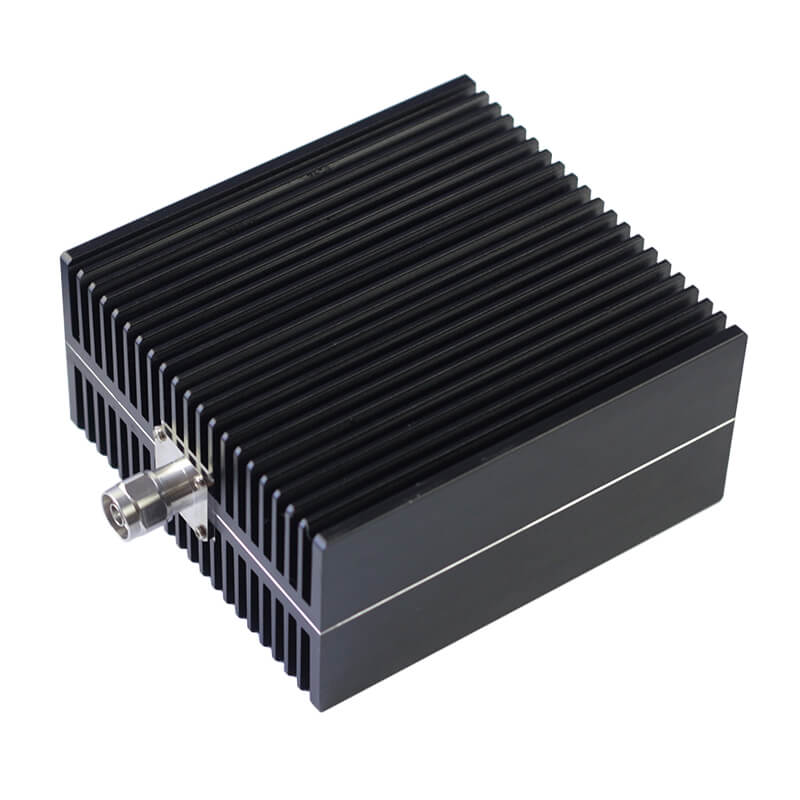

200W N, TNC Attenuator DC-18GHz 10-50dB avaliable

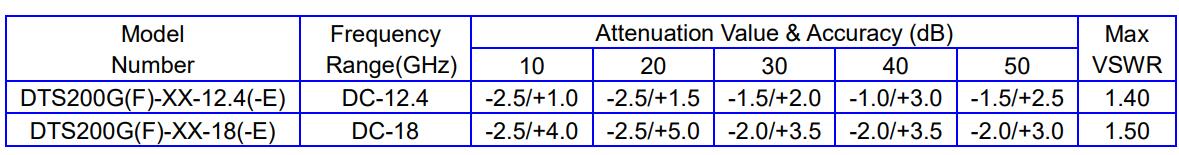

| Specification | Parameter |
|---|---|
| Model | BC-DTS200G(F) -18 |
| Power | 200W |
| Connector | N,TNC |
| Frequency Range | DC-18GHz |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

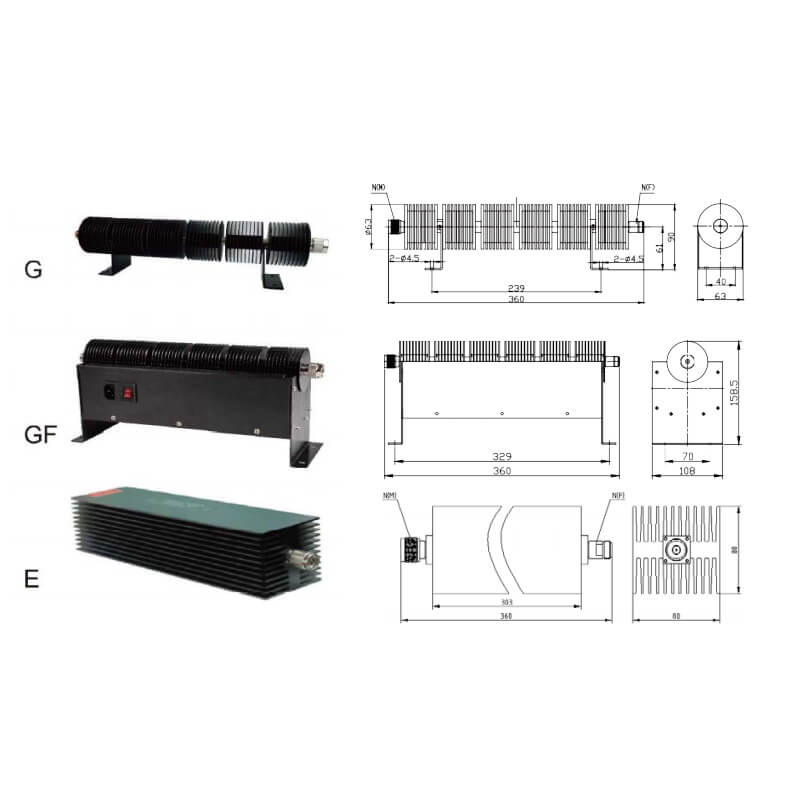

| Dimension | G:360×63×90mm(with shelf); GF:360×108×158mm; E:360×80×80mm |
| Weight | G:1.1Kg; GF:2.2Kg; E:3Kg |
Application:
200W DC-18GHz coaxial fixed attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
