50W N-JK Attenuator 1-40dB Frequency DC-3GHz/4GHz

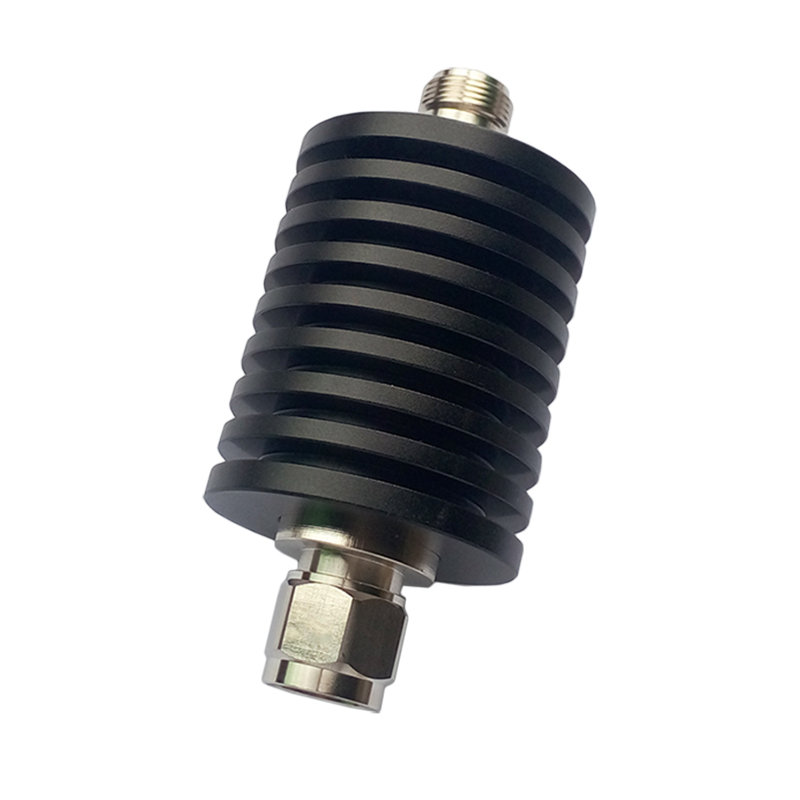

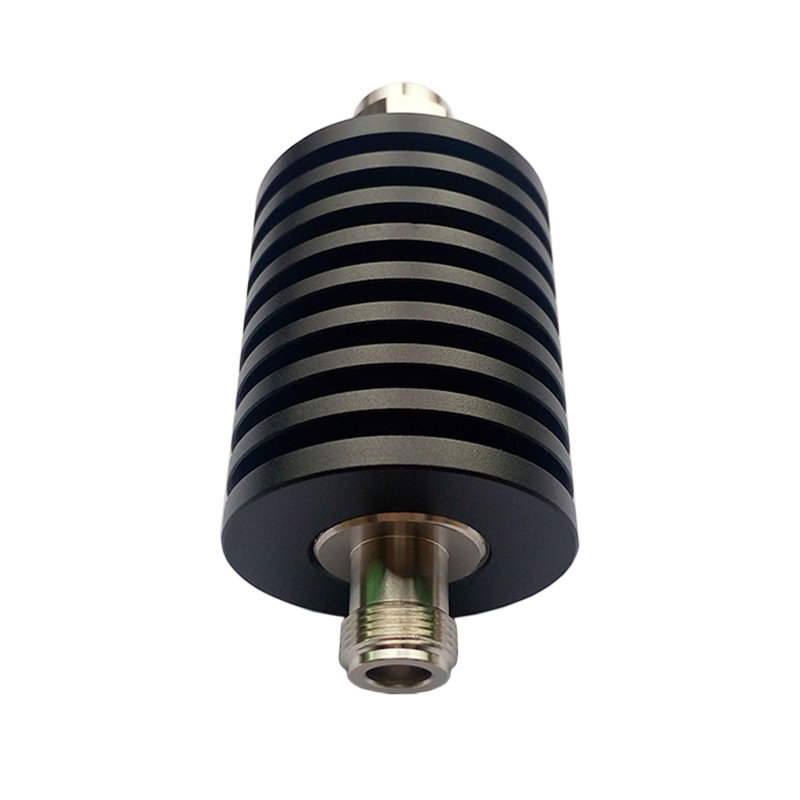

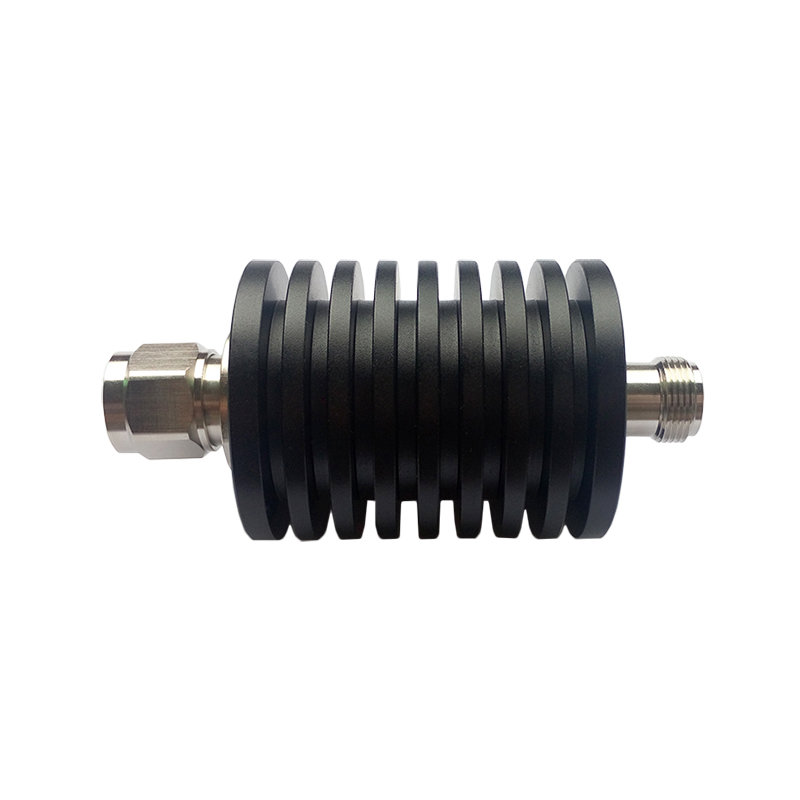

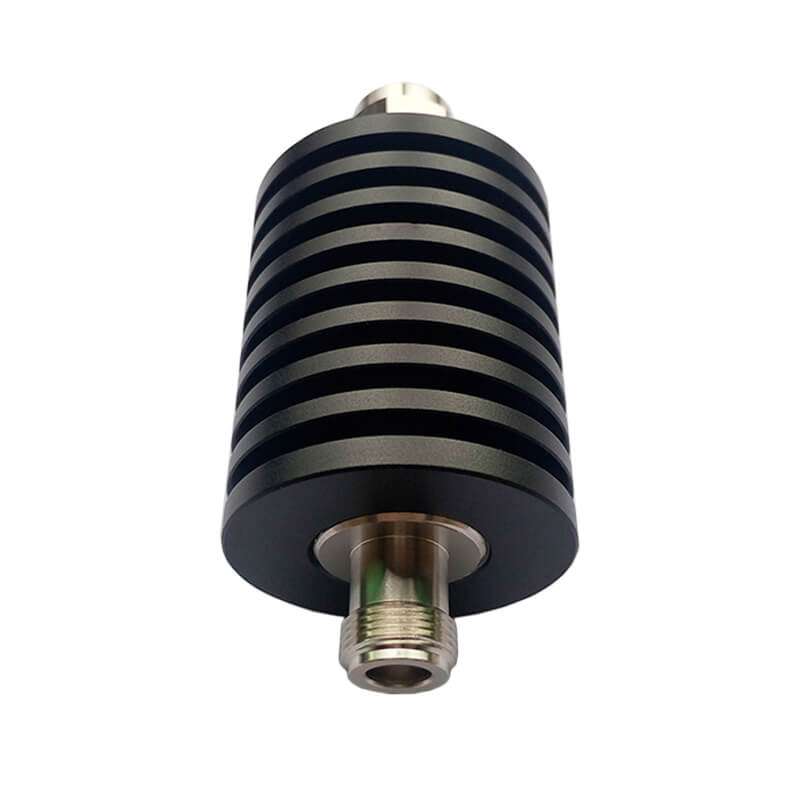

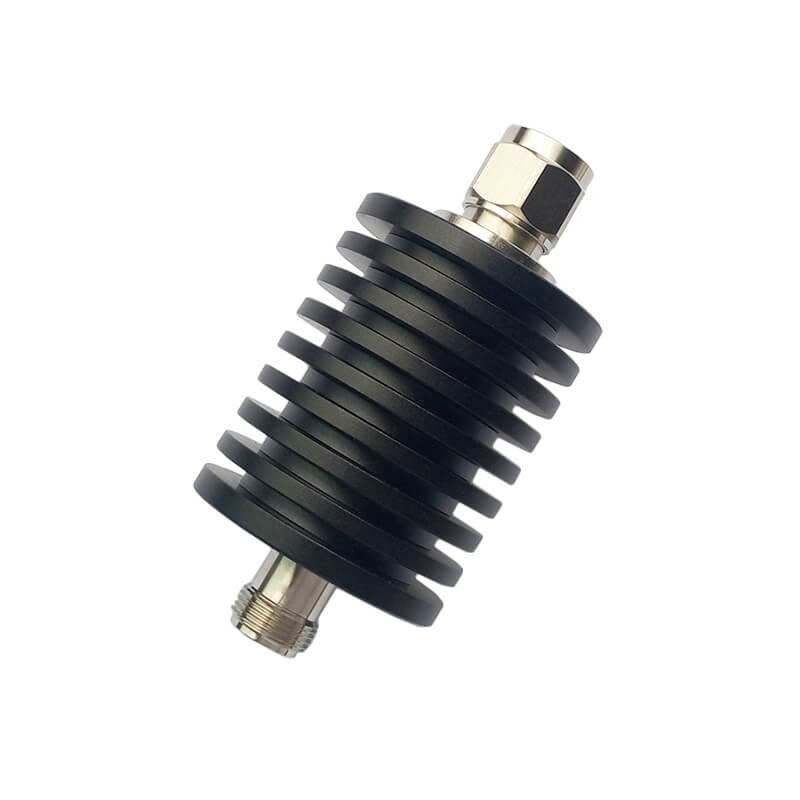

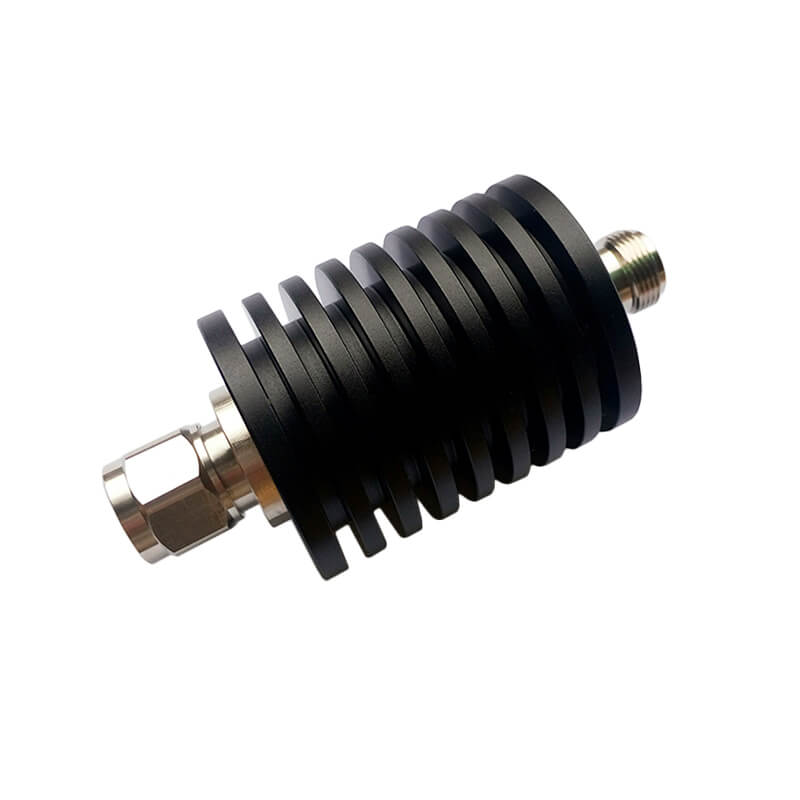

  • becenrf 50W N-JK attenuator image 3
  • becenrf 50W N-JK attenuator image5
  • becenrf 50W N-JK attenuator image 1
  • becenrf 50W N-JK attenuator image 6

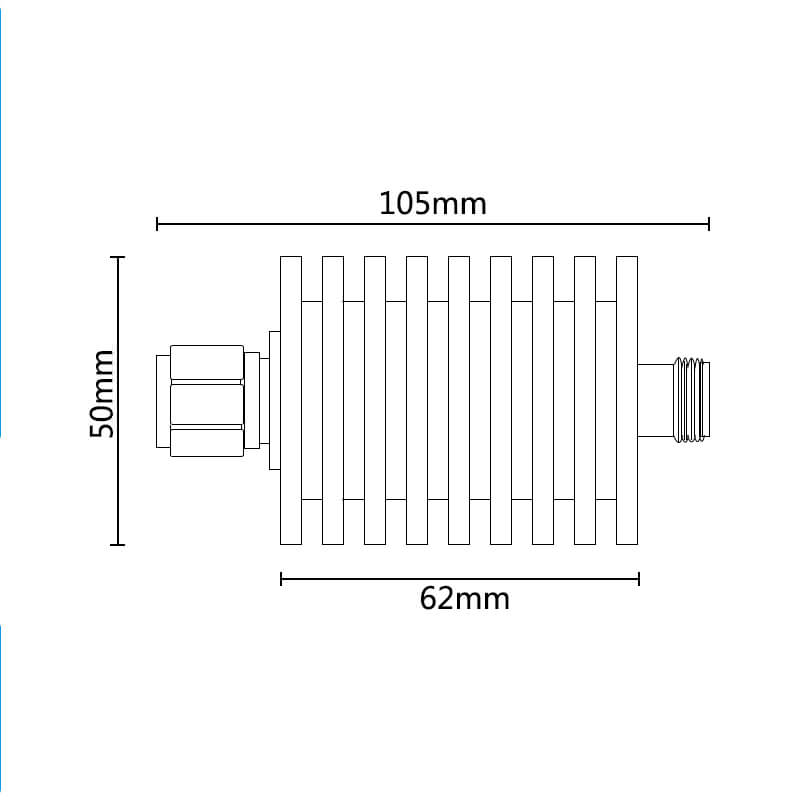

  • 50W N-JK attenuator dimension
Specification Parameter
Model BC-AT50-01
Power 50W
Connector N-JK
Frequency Range DC-3GHz/4GHz
Attenuation 1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-40dB±1dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension 120*45mm
Weight 0.35KG
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

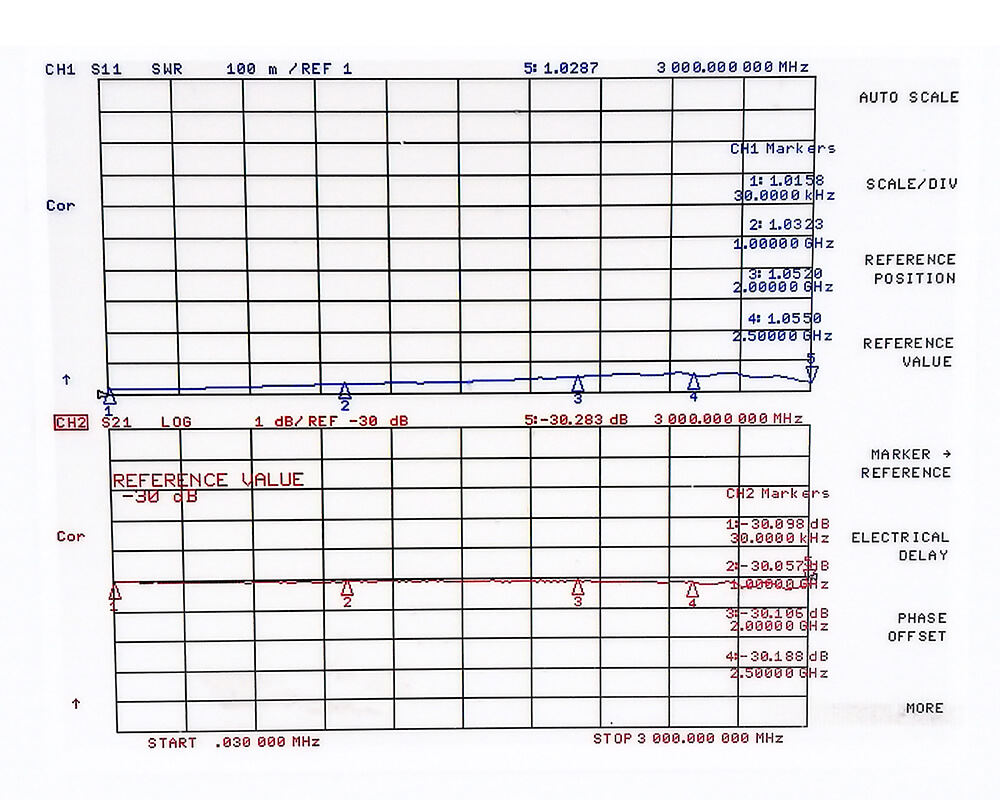

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

50W N RF Attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
