Project Description

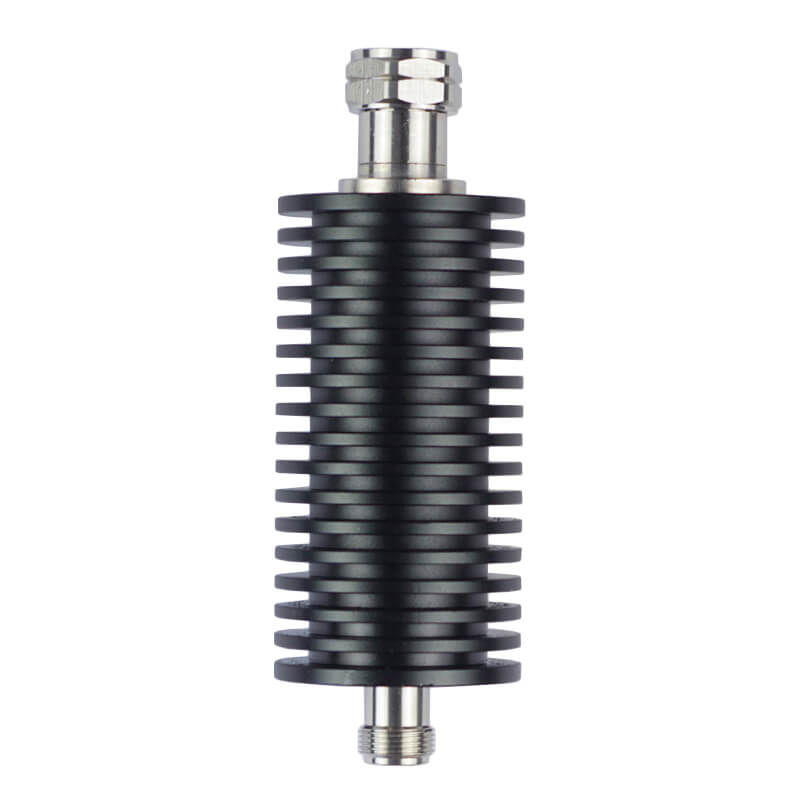

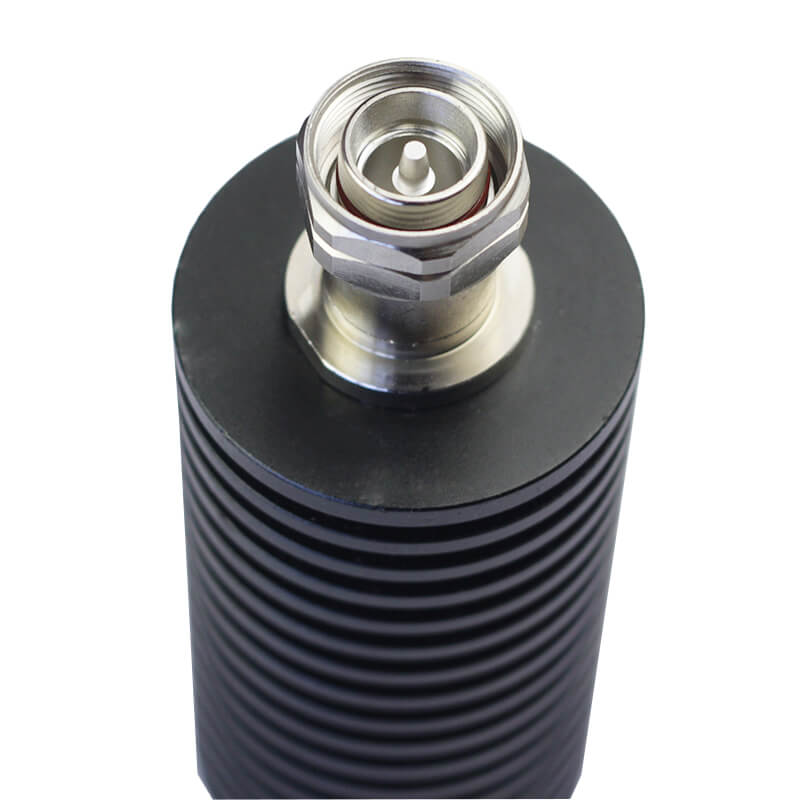

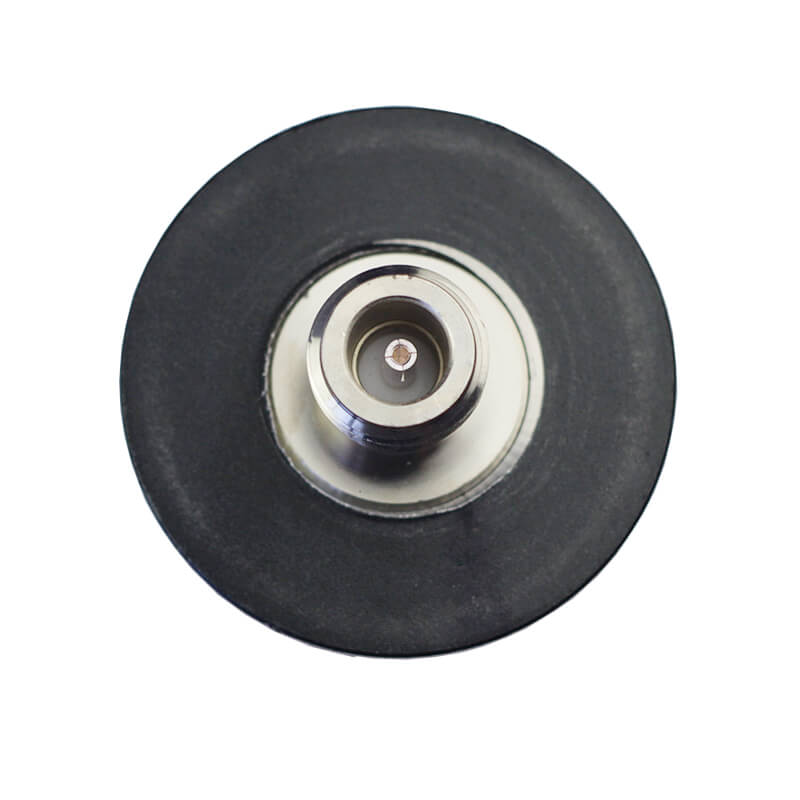

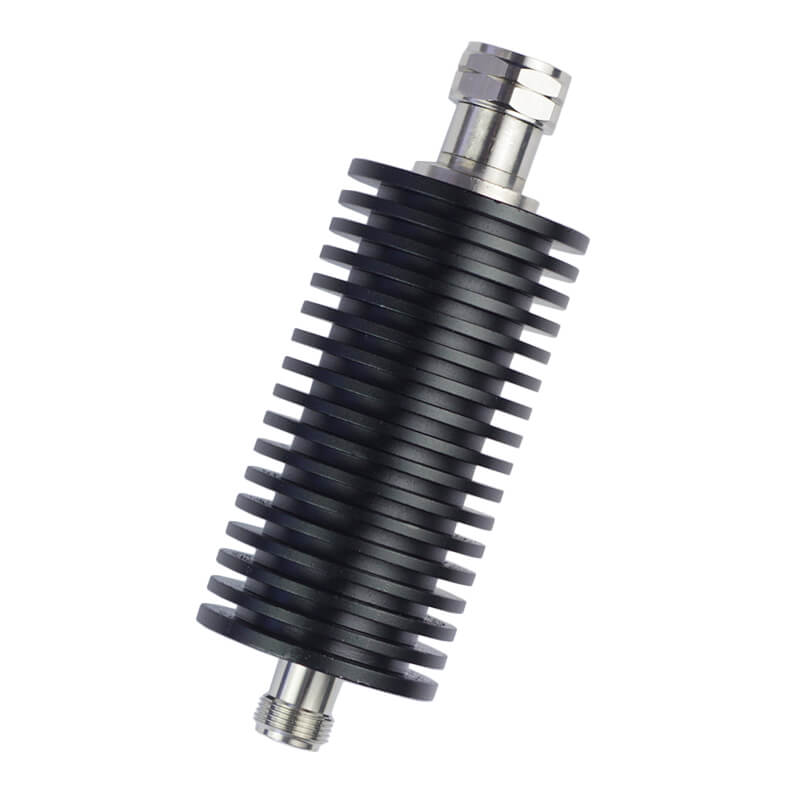

50W MINI DIN-J N-K Attenuator 1-60dB DC-3GHz/4GHz

Specification Parameter
Model BC-AT50-04
Power 50W
Connector MINI DIN-J to N-K
Frequency Range DC-3GHz
Attenuation 1-60dB available, and 1-10dB.±0.5dB,15-30dB±1dB,40-60dB±1.5dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension 144*50mm
Weight 549g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

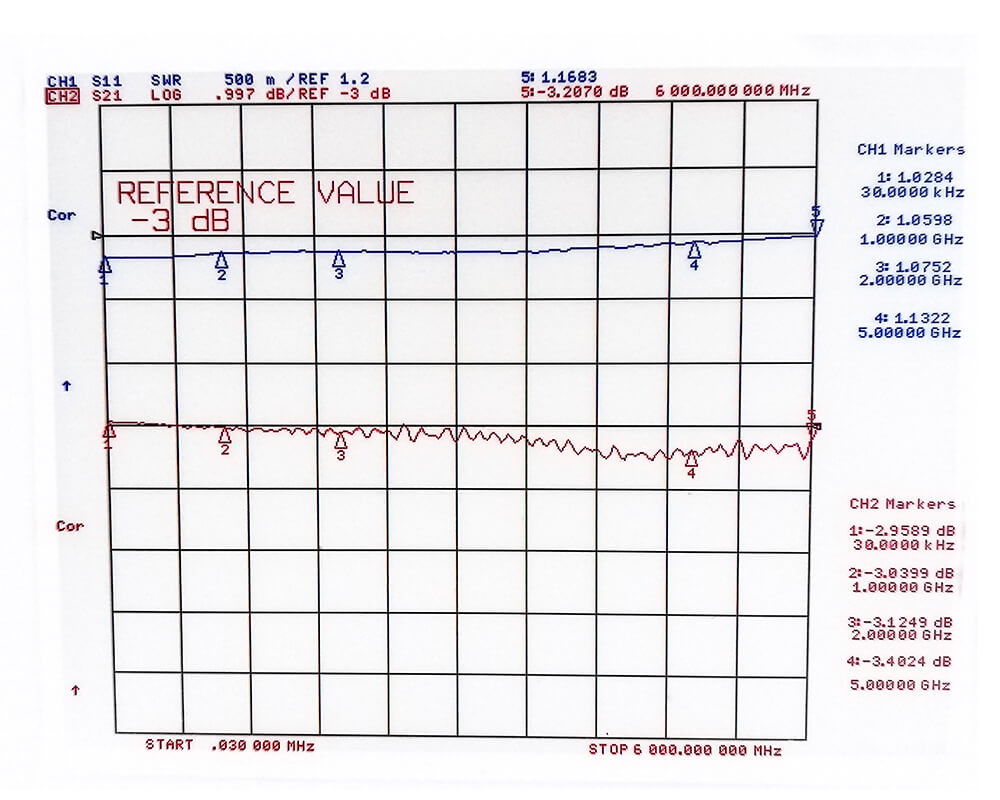

This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT

Application:

50W coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
