30W SMA Male to Female Attenuator DC-3GHz/4GHz 1-40dB available

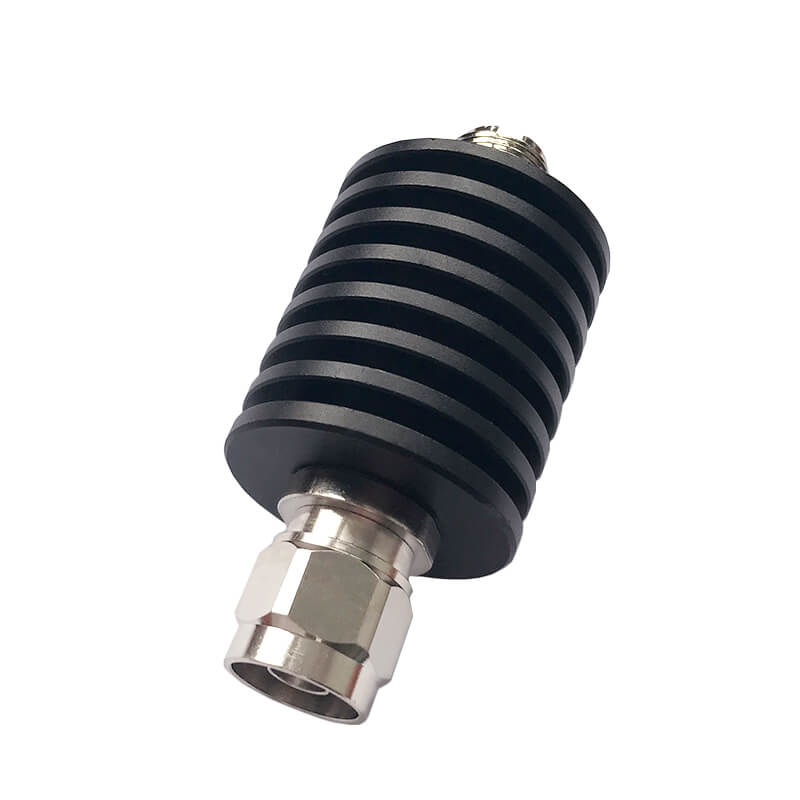

  • 30W SMA-JK Attenuator

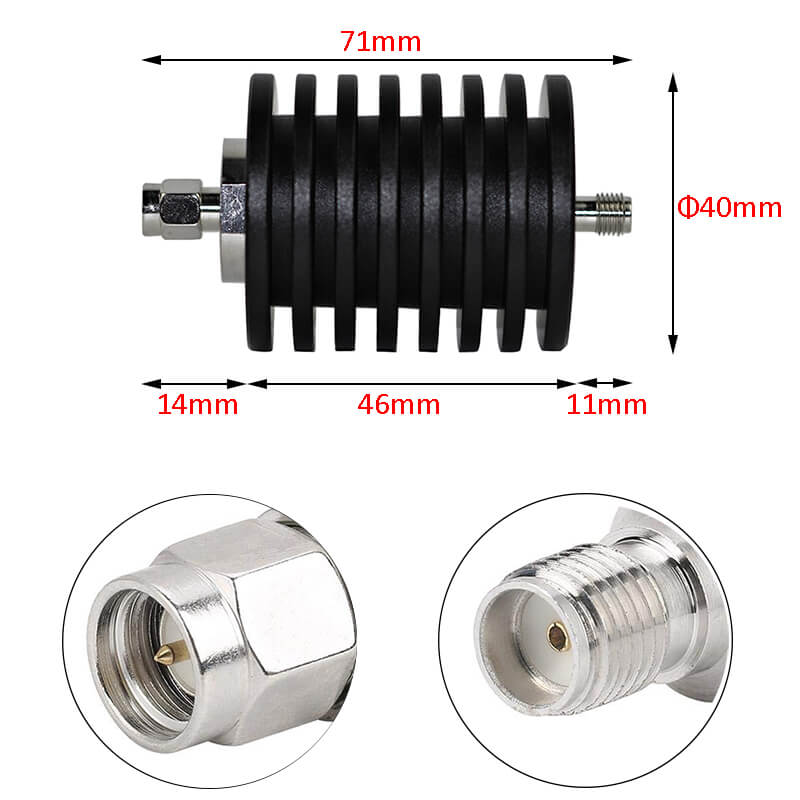

  • dimension of 30W SMA-jk attenuator

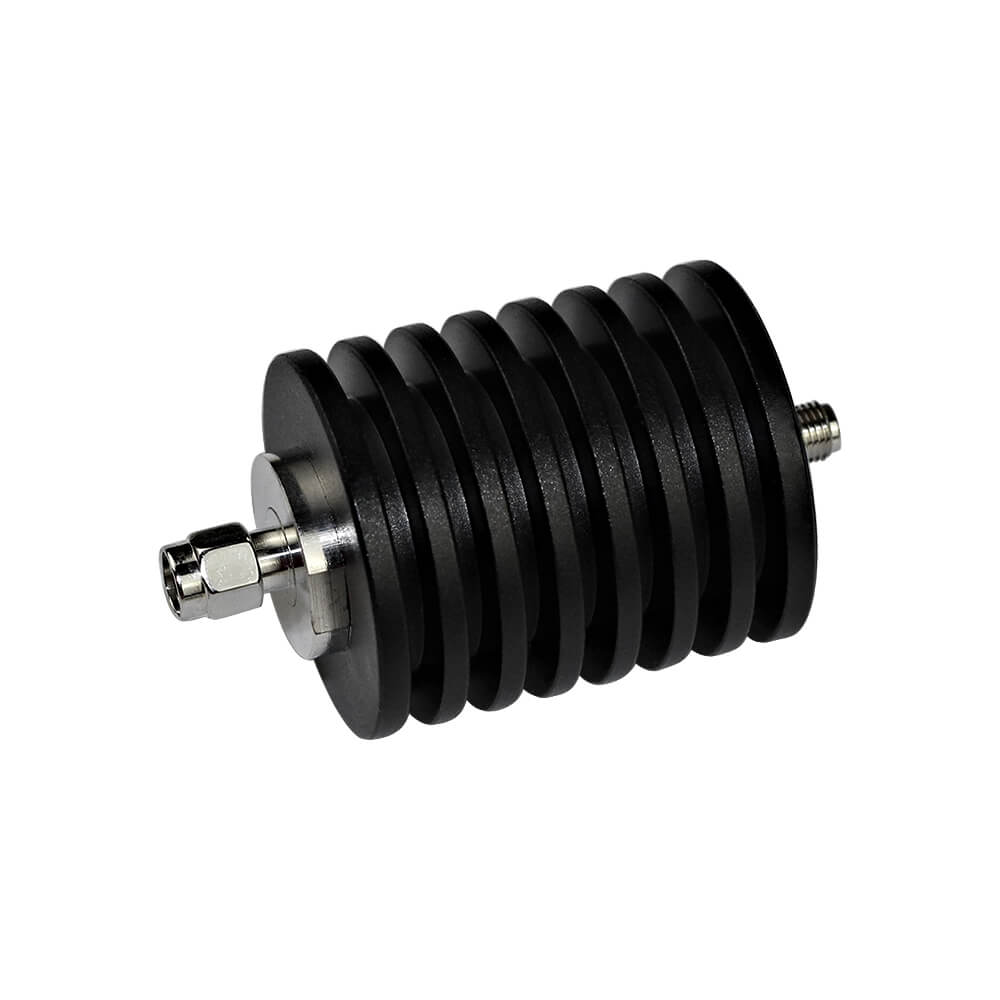

  • 30W SMA-jk attenuator 30db

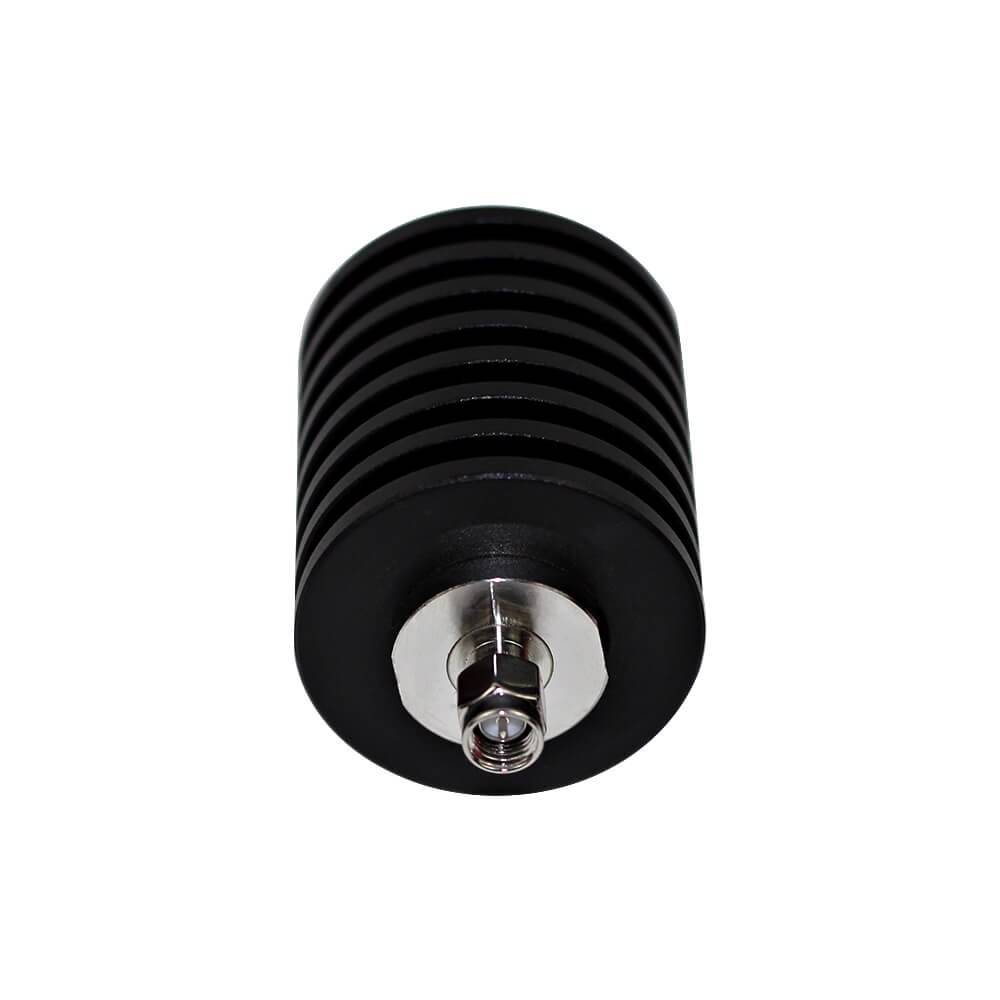

  • 30W SMA attenuator 10db

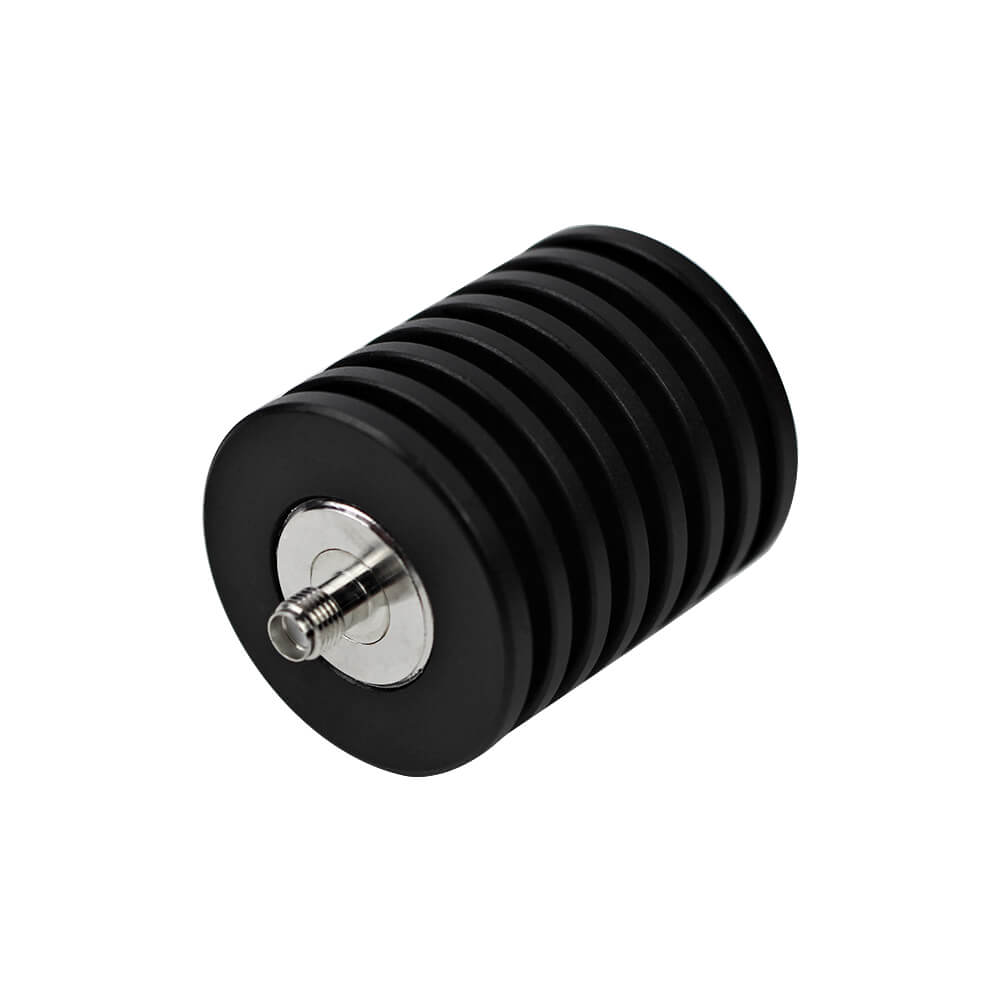

  • 30W SMA attenuator 1-30db

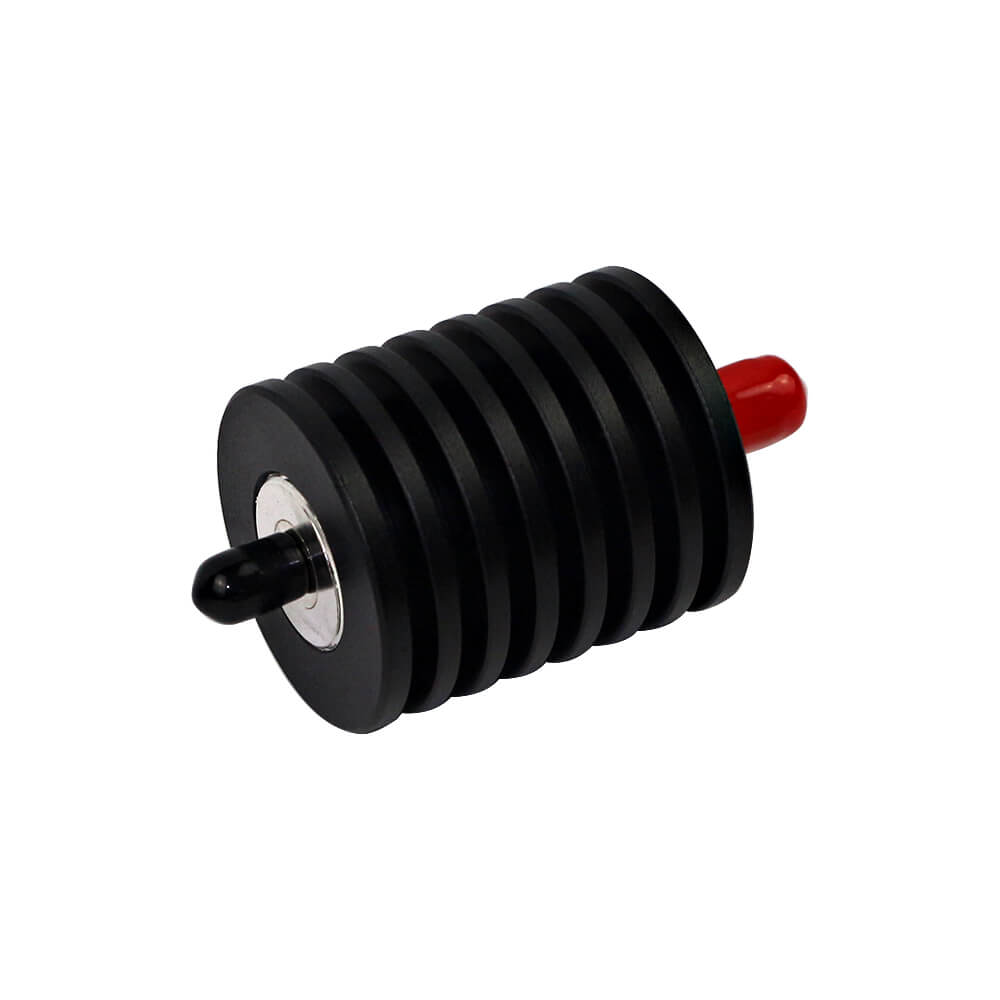

  • black 30W SMA male to female connectors attenuator
Specification Parameter
Model BC-AT30-01
Power 30W
Connector SMA-JK
Frequency Range DC-3GHz/4GHz
Attenuation 1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-40dB±1dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension 71*40mm
Weight 148g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

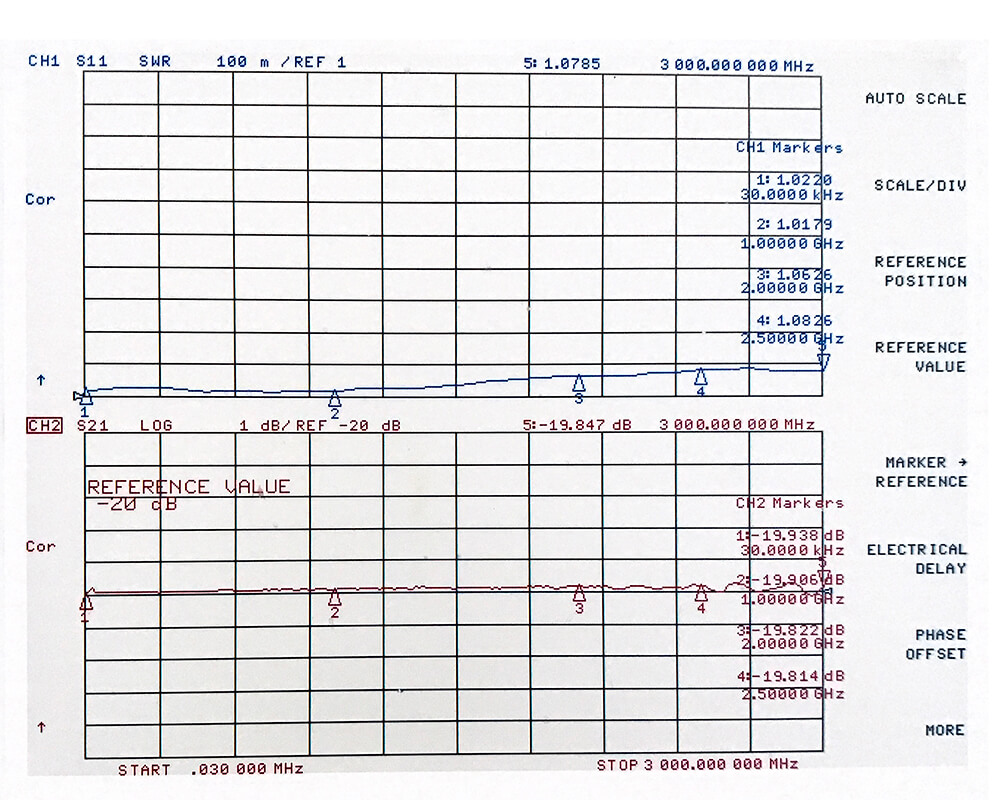

TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

30W coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems

We could do N-JK or other connectors for this product. If you have any other request, please contact us now.
