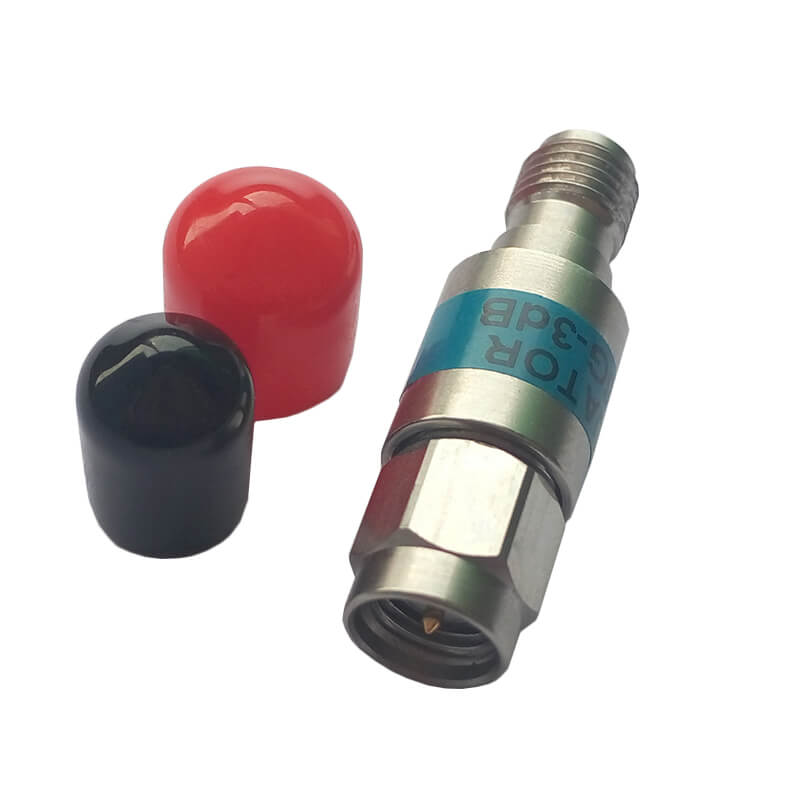

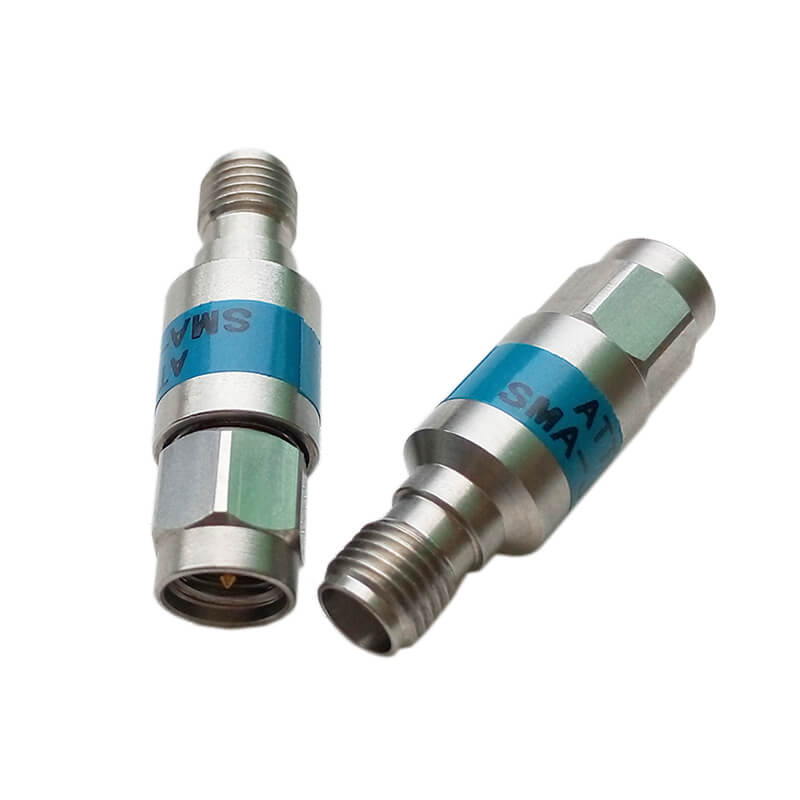

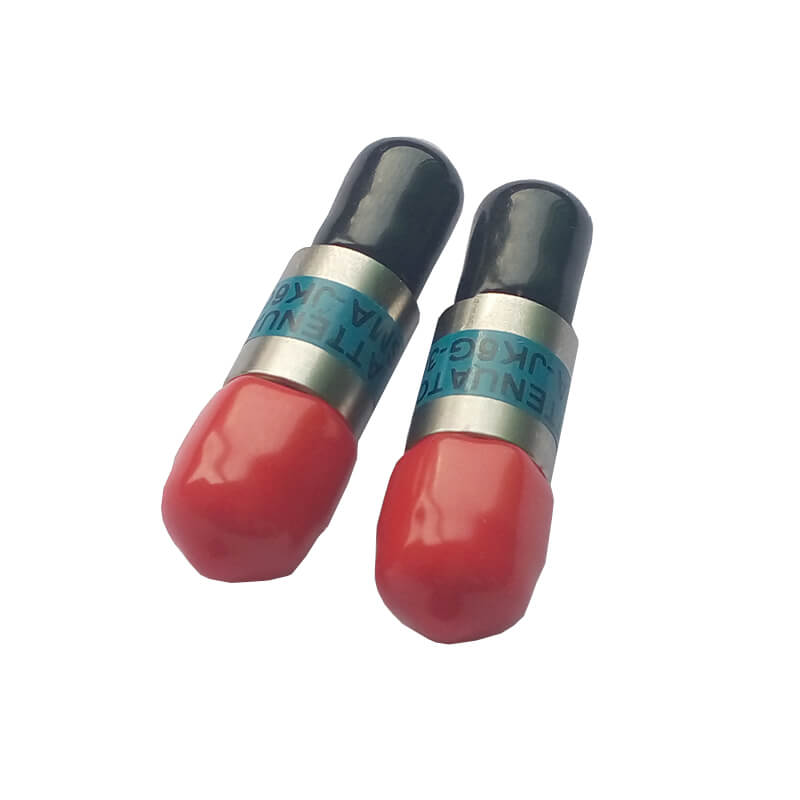

Stainless steel 2W SMA-JK RF Fixed Attenuator 6G/8G/13G/18G 1-60dB

Specification	Parameter
Model	BC-AT02-01
Power	2W
Connector	SMA-JK
Frequency Range	DC-6GHz / 8G/13G/18GHz
Attenuation	DC-6G: 1-60dB available, DC 8-18GHz, 1-40dB available +/-0.5dB;30+/-1dB;40,50dB+/-1.5dB;60dB+/-1.8dB;(5-40dB,13G)+/-1.8dB;(10-40dB,18G)+/-1.8dB
VSWR (MAX)	1.2:1
Impendance	50Ω
Temperature Range	-55°C to +125°C
Dimension	30*9mm
Weight	8g

Download the manual you need!

This is the place where you could download our manual of the product.

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!

2W SMA coaxial fixed attenuator is widely used in below fileds:

Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
