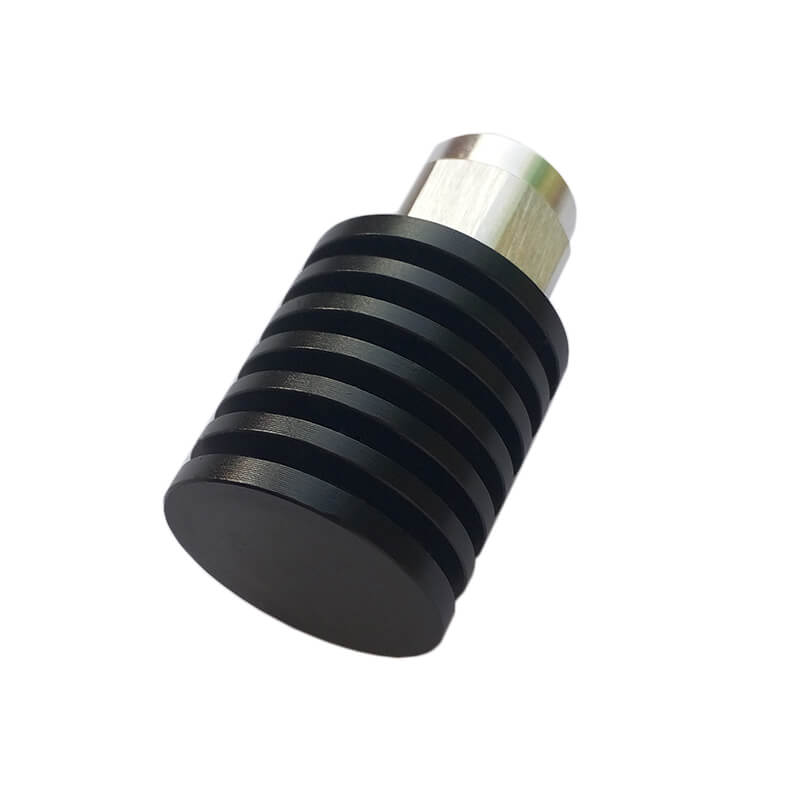

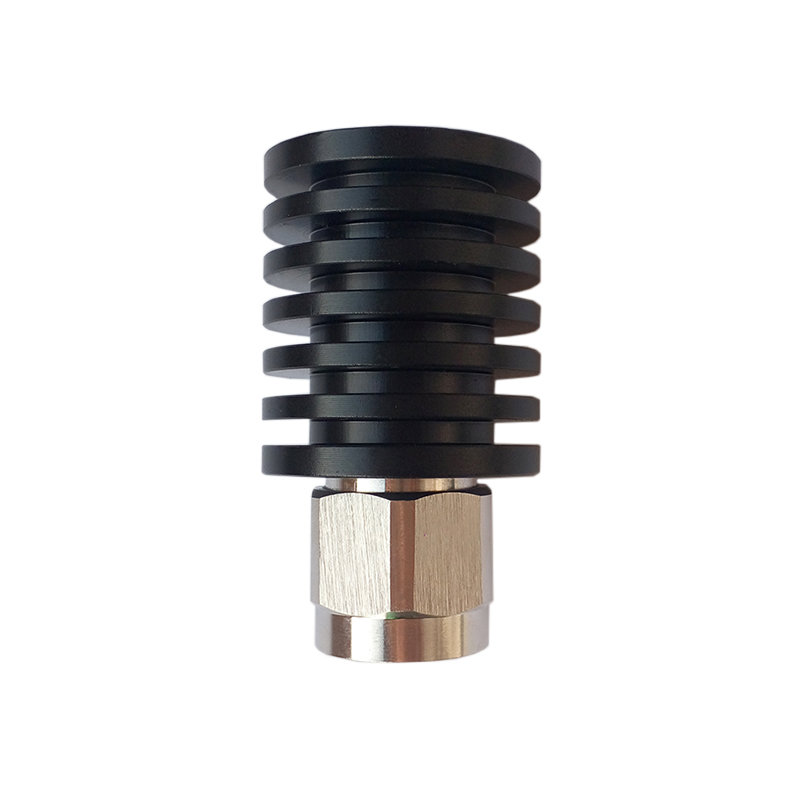

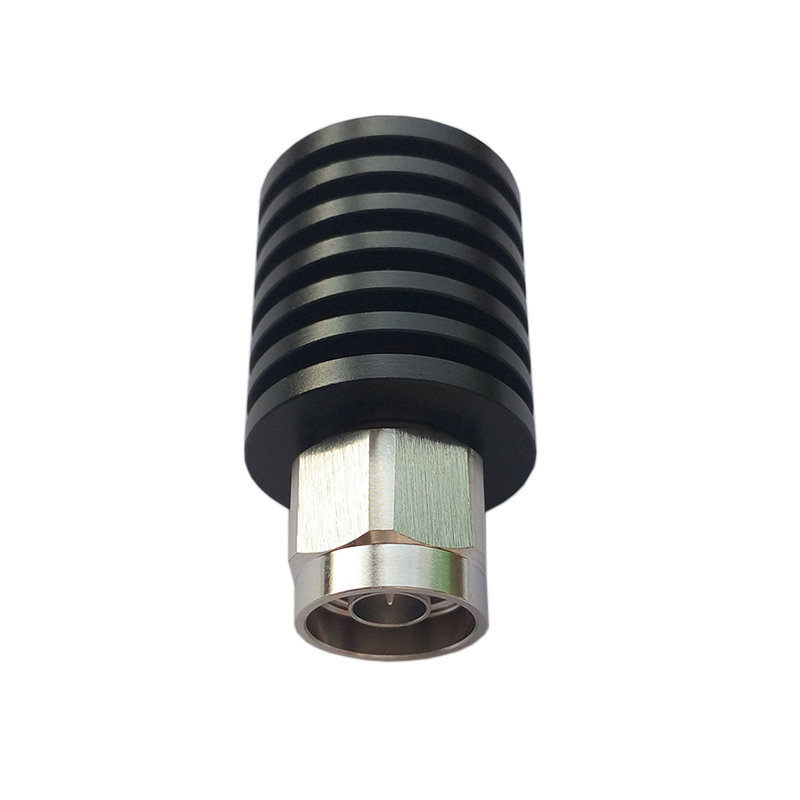

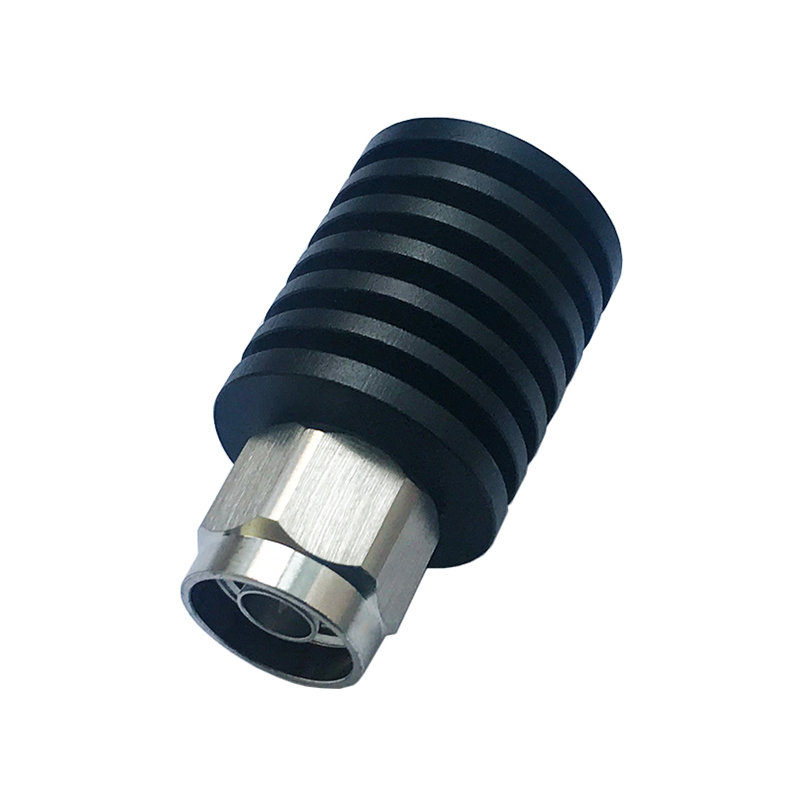

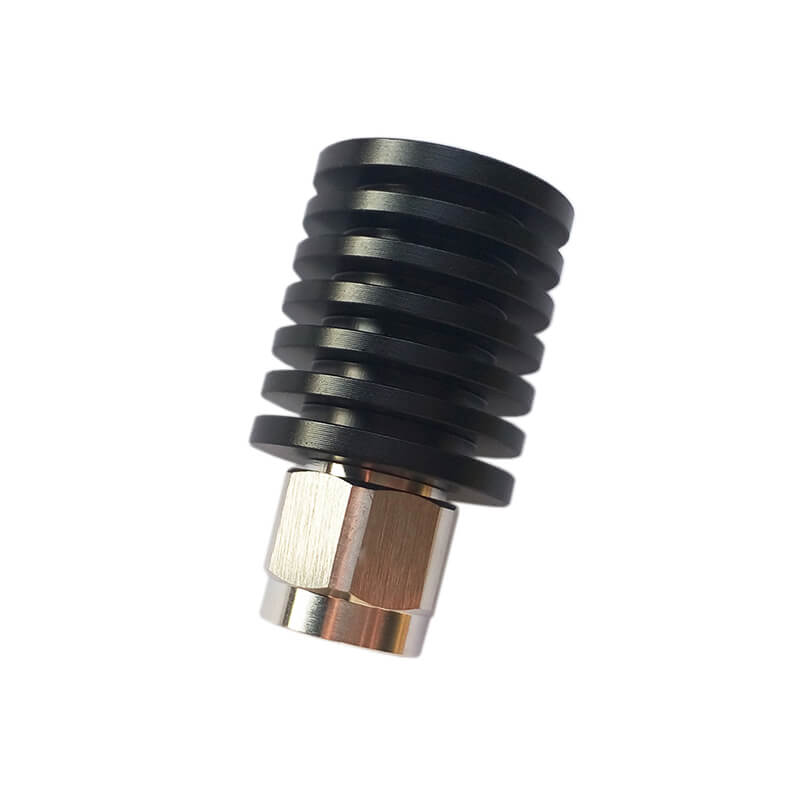

10W N-J DC-3GHz RF Termination Load 50ohm

Specification Parameter
Model BC-TE10-01
Power 10W
Connector N-J
Frequency Range DC-3GHz
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C

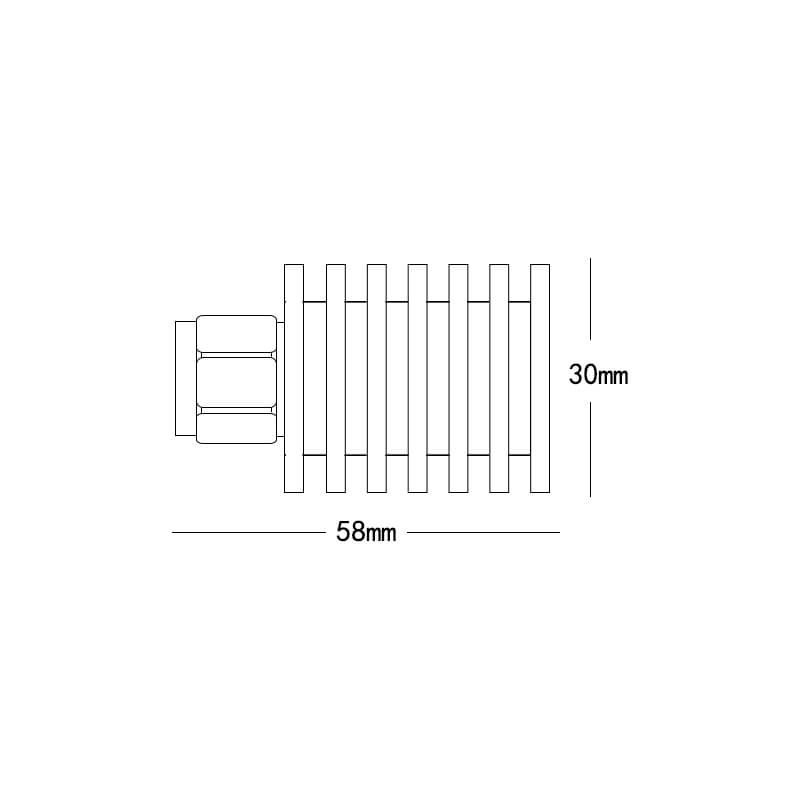

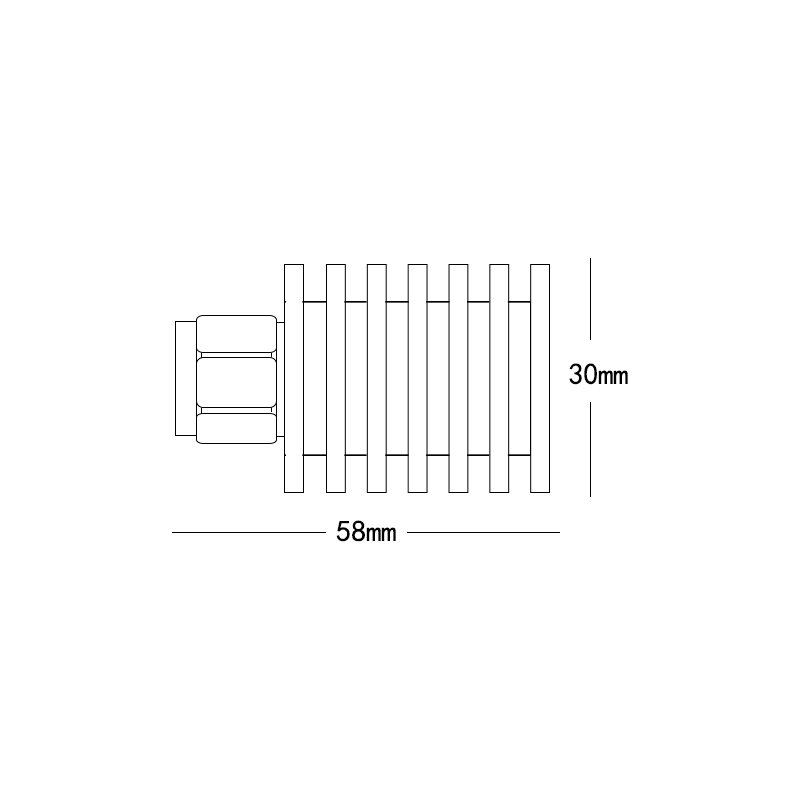

Dimension 58*30mm
Weight 75g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report for 3GHz, If you want to see the report of other frequency range, please contact us for it now.
TEST REPORT

Application:

10W N Male RF Dummy Load (N-j, DC-3GHz) are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators.

We also could do SMA-Male, DIN-Female, DIN-Male, NEX10 or other Connector for this product. If any interest, please contact us.
